Description
The Stellar 1-M Monocular Microscope is the ideal equipment to introduce students to the world of microscopy with quality, durability, and ease of use.
Comfort and Precision in Observation

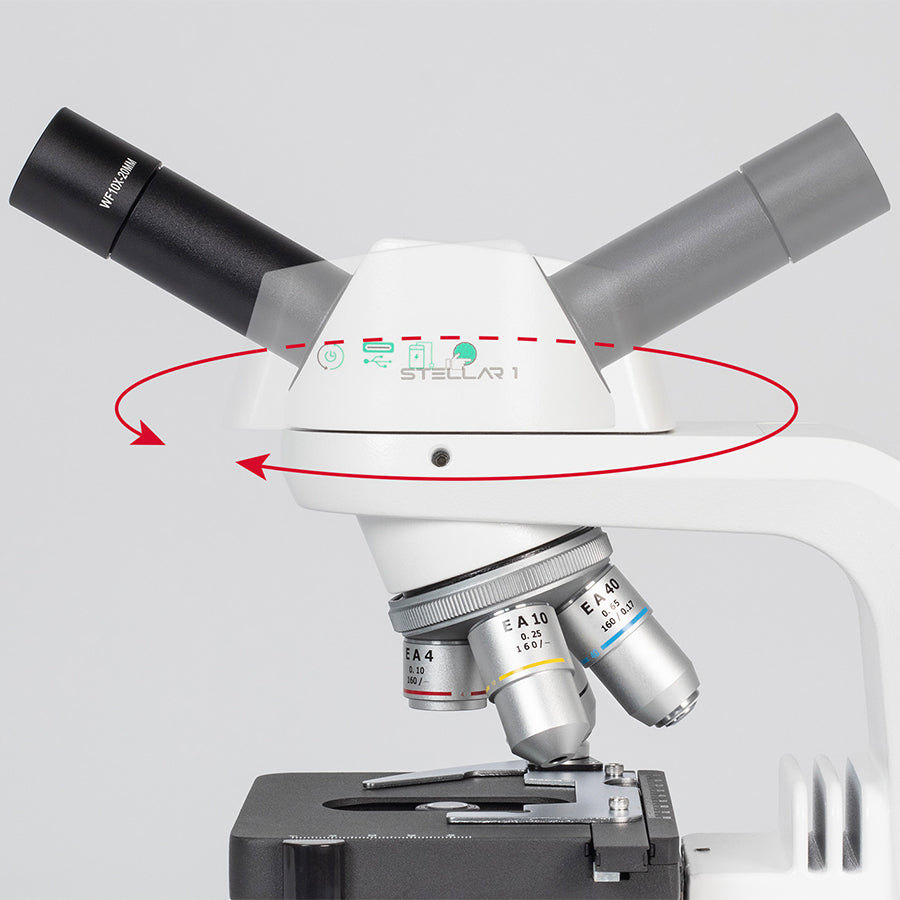

Its 30º inclined monocular head with 360º rotation offers comfortable use for students, also allowing for more practical storage. It features a wide-field WF10X/18mm eyepiece and a quadruple revolving nosepiece that facilitates changing magnifications, ensuring greater precision in observation.
The coaxial micrometric and macrometric adjustments allow for smooth and precise adjustment, ideal for users with little experience. The presence of focus guides helps students quickly find the correct focus, making the process simple and intuitive.
Quality and Durability in Service of Education

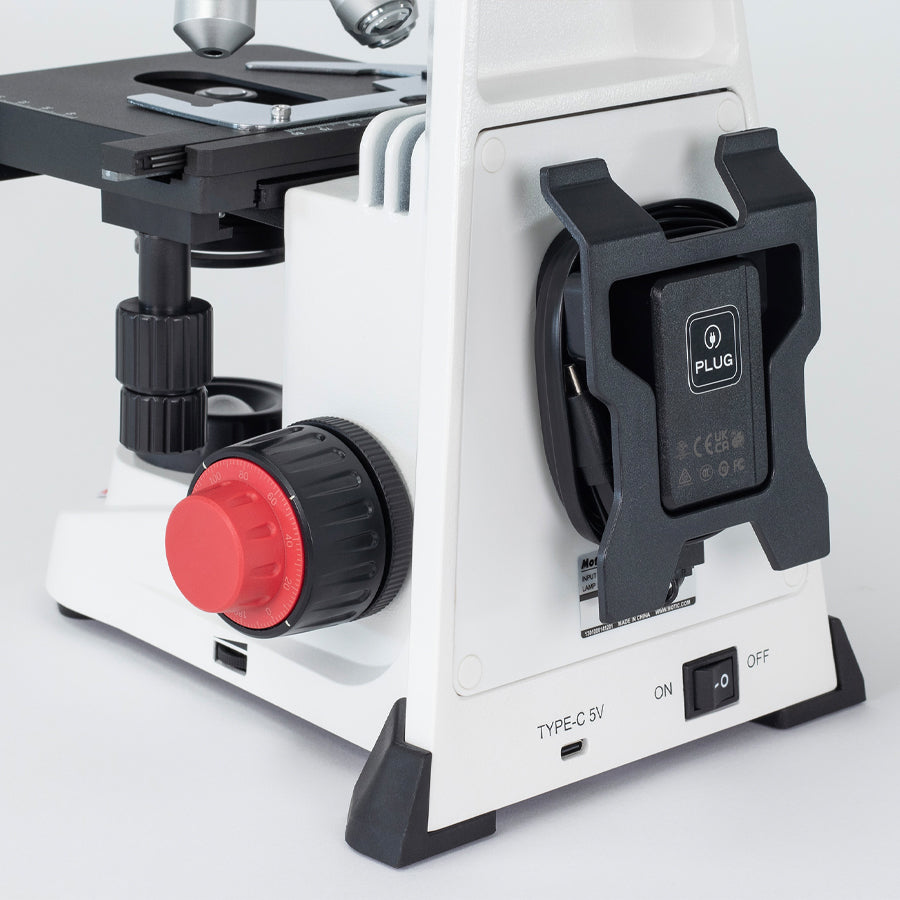

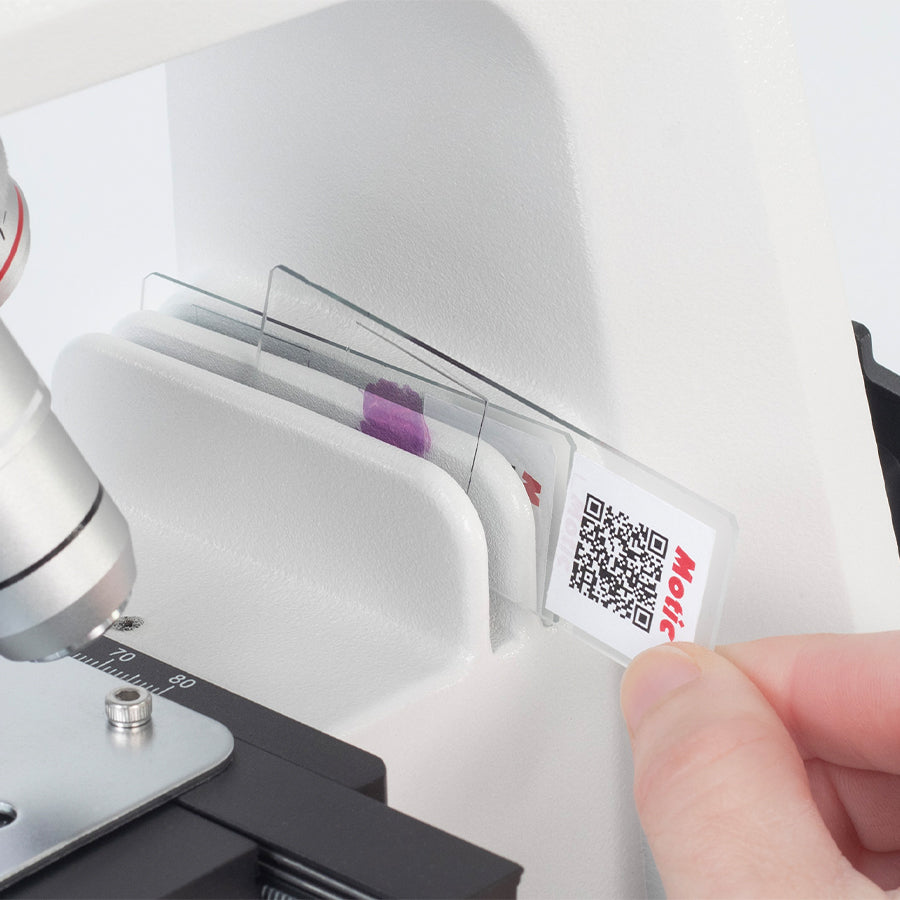

Stellar microscopes were specially developed for educational environments, guaranteeing high resistance to intensive classroom use. Their compact design includes intelligent cable storage , a power adapter holder, and even dual storage space for slides , making equipment organization easier.
The 160mm finite optical system and DIN achromatic SA objectives ensure sharp images with true colors and excellent contrast — ideal for school laboratory activities. Its robust construction makes it resistant to drops or careless handling by students.
Characteristics:
| Category | Details |
|---|---|
| Optical System | Finite optical system, 160mm |
| Observation Tube | Monocular |
| Slope | 30º tilt, 360º rotation |
| Eye | WF10X/18mm large field |
| Revolver | Quadruple |
| Classification of Objectives | EA Achromatic, DIN |
| Objectives | 4X/0.10 (WD 19mm) • 10X/0.25 (WD 6.6mm) • 40X/0.65/S (WD 0.45mm) • 100X/1.25/S-Oil (WD 0.13mm) |
| Lens Thread | RMS (W 4/5 "x1/36") |
| Type of Support | Upright |
| Platinum | Mechanics with coaxial control and integrated sample holder. |
| Platinum Dimension | 125 x 115 mm |
| X&Y Course | 70 x 25 mm |
| Condenser | Abbe 1.25 NA |

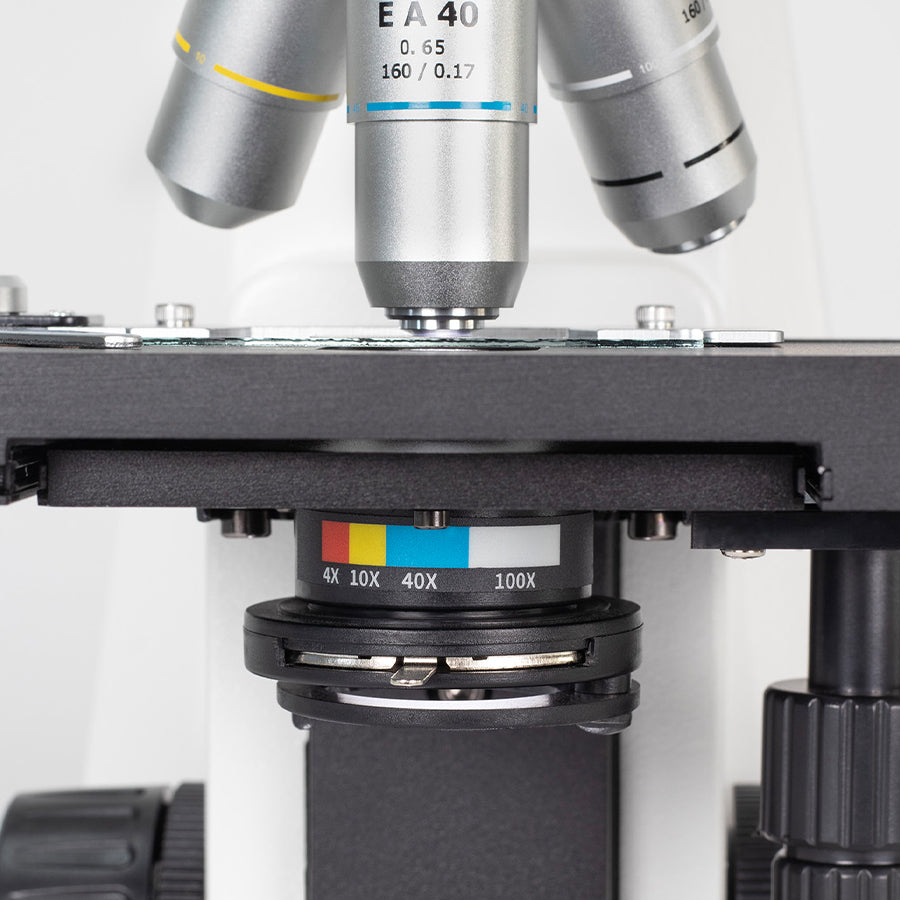

| Diaphragm | Color-coded iris diaphragm |
| Focus | Macro and micrometric coaxial cable with tension adjustment. |
| Fine Focusing Precision | 3.4 µm |
| Focusing Course | 14 mm |
| Upper Limit | Preset and adjustable |
| Lighting | 1W LED, DC 3.3V with intensity control. |
| Lighting Functions | Sleep mode (auto on/off after 30 min) |
| Transformer | External |
| Food | 100–240V (CE) |
| Other Features | Dual blade storage, cable and transformer management, USB-C port (power bank compatible) |
| Included Accessories | Protective cover, immersion oil (5 ml) |
| Dimensions | 338 x 171 x 338 mm |
| Weight | 4.2 kg |
| Transport | Carrying and storage case |
